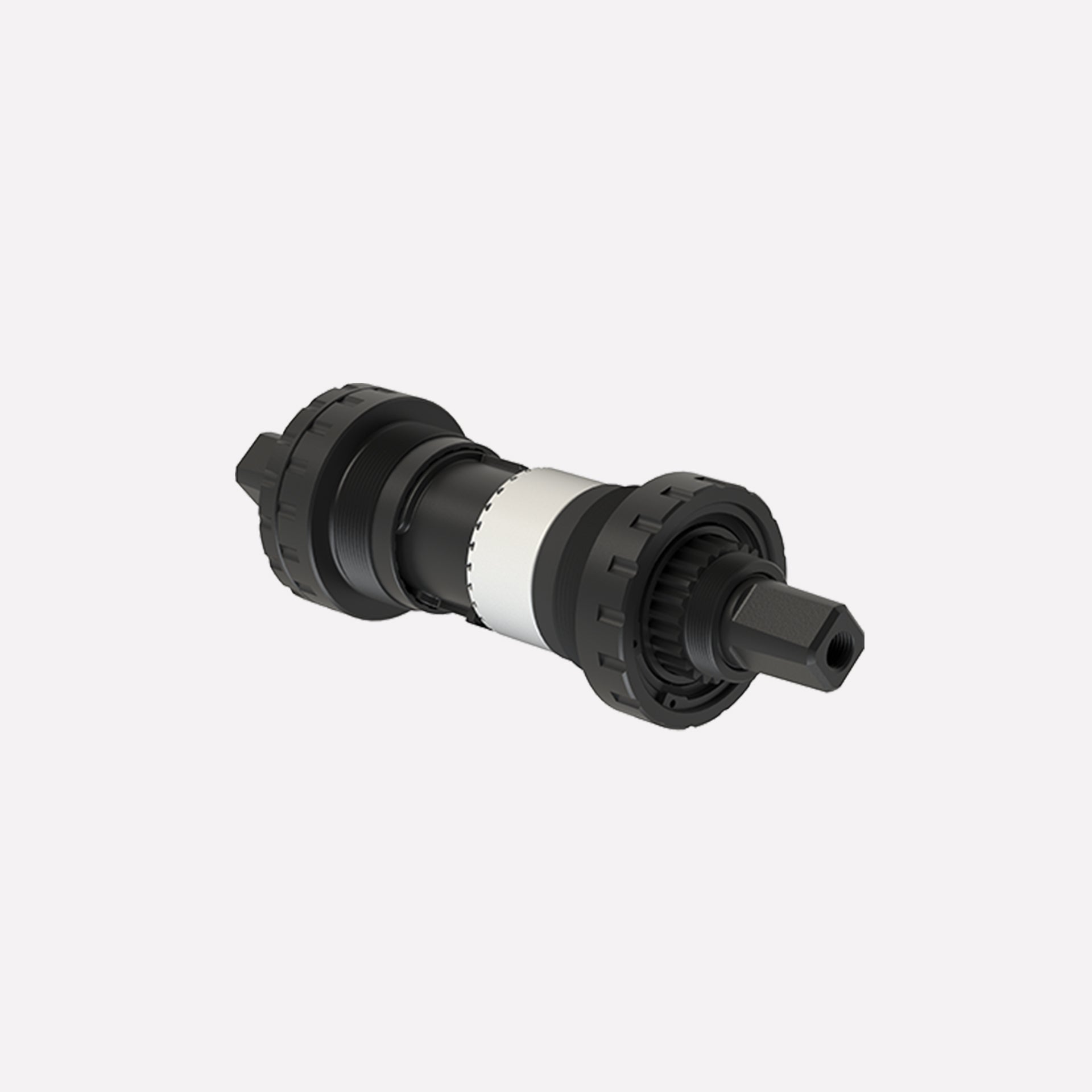

Bottom Bracket Torque Sensor
The torque sensor senses the force you're applying to the pedals, so the motor provides the appropriate torque based on that.
Therefore, the torque sensor will be more accurate compared to the Cadence sensor.
| SPECIFICATIONS * | |
|---|---|
| Type | Speed & Torque Integrated Sensor |
| manufacturer | Bafang |
| Model Number | SR PA231.32.ST |
| Input Voltage (DCV) | 4.5 - 5.5/strong |
| Signals (Pulses/Cycle) | 32 |
| Operation Temperature | -20 - 45℃ |
| Model Compatibility | Revenant |
| Shaft Standard | JIS |
| Weight (g) | 650 |
| Mounting Position | Bottom Bracket |
| IP | IP X5 |
| Certifications | EN 15194 / EN 14764 / ROHS |
